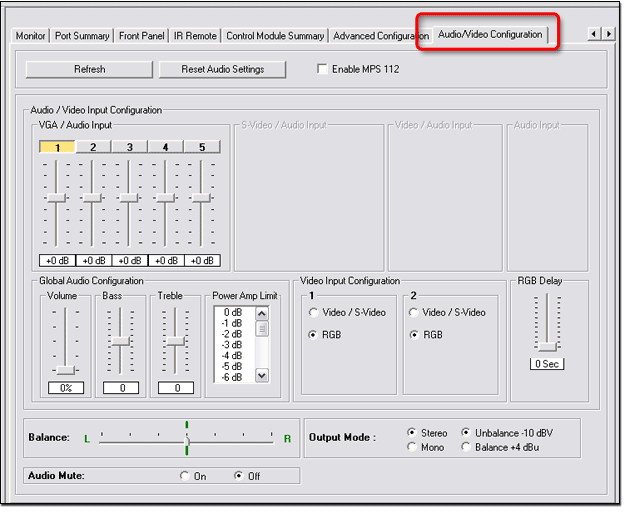

Audio/Video Configuration Tab

The Audio/Video Configuration tab provides several audio and video configuration controls.  It is only present if a System 5 IP or one of its control ports is selected in the IP Link® Tree window.

Details on the following controls are provided below:

Refresh

The Refresh button retrieves current data from the selected device and repopulates the fields in this screen to match the current device settings.

Reset Audio Settings

The Reset Audio Settings button resets the device's audio settings to their factory default condition.

Enable MPS 112

The Enable MPS 112 checkbox turns on the S-Video / Audio Input, Video / Audio Input, and Audio Input gain controls.  It also adds the MPS 112 faceplate in the Front Panel tab.  For more information, see Enable MPS 112 in the Front Panel Tab section of this help file.

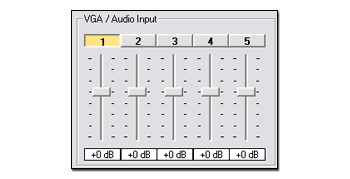

VGA / Audio Input

Sets the gain level for the audio inputs associated with each of the five VGA inputs of the System 5 IP Switcher.

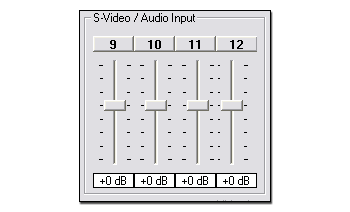

S-Video / Audio Input

The MPS 112 Media Presentation Switcher must be enabled for the S-Video / Audio Input gain level controls to be active.

Sets the gain level for the audio inputs associated with each of the four S-Video inputs of the MPS 112.

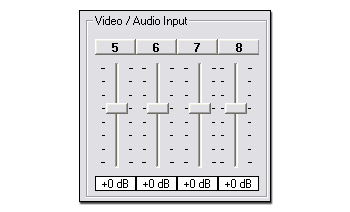

Video / Audio Input

The MPS 112 Media Presentation Switcher must be enabled for the Video / Audio Input gain level controls to be active.

Sets the gain level for the audio inputs associated with each of the four Video inputs of the MPS 112.

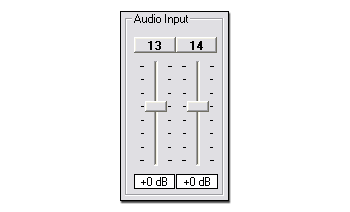

Audio Input

The MPS 112 Media Presentation Switcher must be enabled for the Audio Input gain level controls to be active.

Sets the gain level for the two audio inputs of the MPS 112.

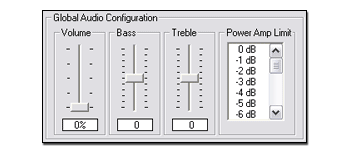

Global Audio Configuration

Provides Volume, Bass, and Treble controls that affect all of the selected device's audio channels.

The Power Amp Limit provides a control setting to limit the audio amplifier to prevent overdriving and shutting down the power supply.

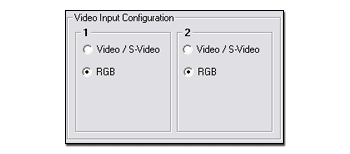

Video Input Configuration

Input ports 1 and 2 on the System 5 IP are capable of accepting either RGB (3 or 5 wire) or composite video (1 wire) or S-Video (1 wire) inputs.

Use this screen to identify which type of input is present on ports 1 and 2 of the System 5 IP Switcher.

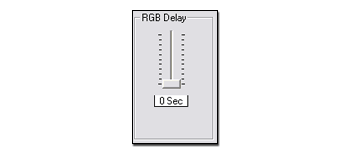

RGB Delay (aka Triple-Action Switching™)

Triple-Action Switching is when the RGB input signal is muted during switching until the projector has time to sync up to the new image.

This prevents viewers from seeing a scrambled image that may occur during switching.

Viewers will instead see a blank screen for the duration of the RGB Delay setting.

The RGB Delay options are 0 to 5 seconds in 0.5-second increments.

Balance

Sets the left/right audio balance.

Audio Mute

Turns the Audio Mute function on or off.

Output Mode

Sets the audio output options:

  • Stereo or Mono

  • Unbalanced or Balanced
