Context Menus

Context menus are available by right-clicking on one of the following items, in the IP Link® Tree window:

• Device name

• Control port

• Control module

• IR port

• Power port

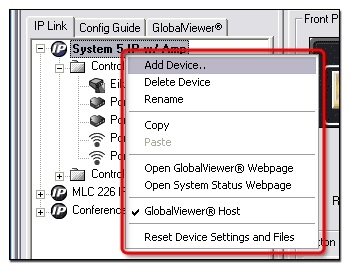

Device Context Menu

To open a device context menu:

1. In the IP Link Tree window, position the cursor over a device name.

2. Click the right mouse button.

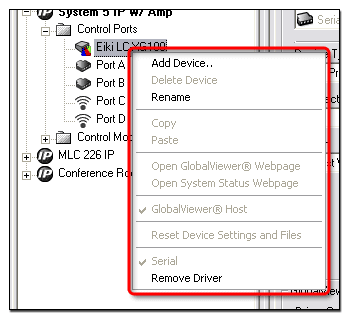

Control Port Context Menu

To open a Control port context menu:

1. In the IP Link Tree window, position the cursor over a control port.

2. Click the right mouse button.

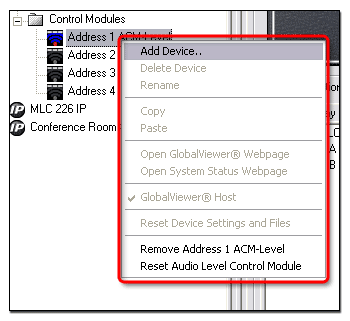

Control Module Context Menu

To open a Control module context menu:

1. In the IP Link Tree window, position the cursor over a Control module.

2. Click the right mouse button.

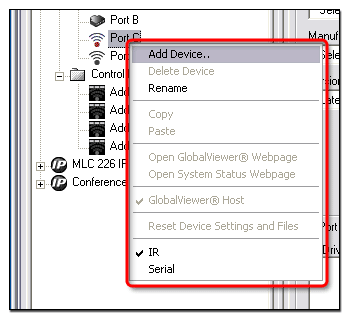

IR Port Context Menu

To open an IR port context menu:

1. In the IP Link Tree window, position the cursor over an IR port.

2. Click the right mouse button.

Power Port Context Menu

To open the context menu:

1. In the IP Link Tree window, position the cursor over the Switched 12VDC Power Ports folder.

2. Click the right mouse button.
