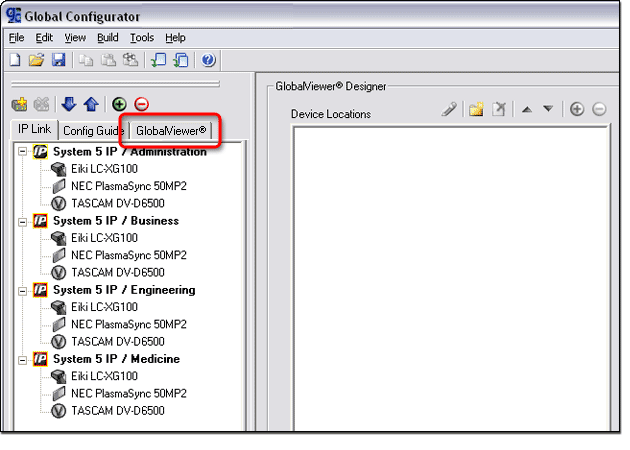

To create a Device Locations
tree when the GlobalViewer
tab is selected in the IP Link Tree window:
In the GlobalViewer Designer section,
click the New
Location icon. A
location folder is added to the tree with a label that can be edited. Enter a unique folder name for the
location folder (such as Administration
Building). Click the New
Location icon again and
enter the name of the next location (such as Business
Building). Repeat this procedure to add all

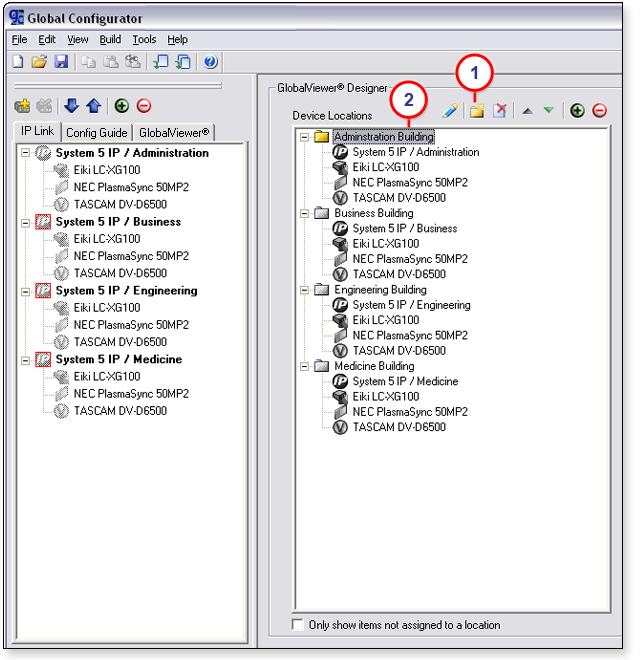

of the desired locations. Some examples shown in
the image below include:
Engineering
Building Medicine
Building
Drag the desired devices from the
GlobalViewer
tab of the IP Link Tree window to the desired locations in the Device
Locations section. As
each device is moved to an assigned location, its icon in the GlobalViewer
tab of the IP Link Tree window becomes partially transparent.
Note:
Select the Only
show items not assigned to a location
check box at the bottom of the
Device Locations
section to have the devices disappear
from the IP Link Tree window as they are moved to a location in the Device
Locations
section. |
