As Internet Protocol (IP) becomes more widely used in sophisticated A/V environments, the Extron family of network-enabled products continues to grow. The IP Link Series uses Extron IP Link technology, a high performance, intelligent network integration solution specifically engineered to meet the needs of professional A/V environments, from large universities and businesses to small home installations. Multiple Ethernet-enabled A/V products can be managed and supported by a technician or administrator at any time from any computer with a web browser. Click on a link in the lists below or scroll down the page for detailed information on the Extron IP Link products. Software, user guides, brochures, and white papers for each product are available at www.extron.com. |
IPI 201
|
IPI 204
|
IPL T CR48
|
IPL 250The Extron IPL 250 is an Ethernet control processor for
use as part of a TouchLink Serial portsThe IPL 250 features three bidirectional RS-232 ports. When configured for pass-through mode, the IPL 250 can pass through commands from an existing control system without losing the ability to communicate with the A/V device. IR capabilityThe IPL 250 includes four fully programmable IR ports.
Each IR port can output IR signals with or without the carrier signal
using a wired IR emitter or through an IR broadcaster. IR control data
can be collected and stored in two ways: IR data
file download and IR learning. Extron maintains
a vast library of IR data files that can be Contact closure and relaysFour contact closure inputs interface with other systems in the room and provide a connection to a variety of devices, such as sensors, switches, and relays. In addition, the IPL 250 contains four relays for controlling screens, projectors, lights, security gates, and more. |
IPL T PC1 (120 VAC)IPL T PC1i (220 VAC)The Extron IPL T PC1 and IPL T PC1i AC Power and Device Controllers with IP Link feature a single AC power outlet, RS-232, an IR output and a contact closure input. Both models include Extron IP Link technology, enabling flexible, centralized, web-based power and device management. The IPL T PC1 supplies up to 10 A of 120 VAC power, using
an Edison outlet. The IPL T PC1i supplies up to Web-based A/V device management is further enhanced by the RS-232 and IR ports, which can be used to remotely control the operation of a DVD player, VCR, or display. The contact closure input port can detect a switch closure.
A monitor can be set that triggers an action, such as The IPL T PC1 and IPL T PC1i are easily integrated alongside
other IP Link products and can be remotely managed and controlled using
the free GlobalViewer The integration of AC power control with device control in a single enclosure makes IPL T PC1 Series controllers ideal for a wide variety of remote networked applications. |
IPL T PCS4 (120 VAC)IPL T PCS4i (220 VAC)The IPL T PCS4 Series Four Port Power Control and Current Sensors offer centralized power management for up to four AC outlets. The IPL T PCS4 features four 120 VAC Edison outlets with a maximum 10 amp load, while an international version, the IPL T PCS4i, features four 220 VAC IEC power outlets, also with a maximum 10 amp load. Both models feature Extron IP Link technology, enabling flexible, centralized, web-based power management. The IPL T PCS4 Series allows administrators to remotely control individual outlets and assign outlets to groups for simultaneous control and monitoring of multiple outlets. Outlets can be turned on or off manually or scheduled for automatic operation. For event logging and record keeping, the IPL T PCS4 can be programmed to send out an e-mail notification as each scheduled on/off event is performed. The IPL T PCS4 Series also features intelligent current
sensing. Thresholds can be set to define full power and standby states
for individual devices, and user-configurable alarms can be triggered
when a threshold is reached or a change is detected. Users can view the
immediate status of all connected devices and determine at a glance whether
a device is drawing full current, in a standby state, or not drawing any
current at all. When power is restored following an outage, the IPL T PCS4 Series powers up devices in a specific sequence rather than all at once to avoid tripping breakers. This prevents power surges at startup. When the IPL T PCS4 restarts, outlets are powered up sequentially with a user-configurable delay between each one. The internal memory of the IPL T PCS4 ensures that only those devices that were on before the outage are restarted. |
IPL T S1The Extron IPL T S1 is a compact Ethernet control interface
with a high performance web server, designed to One serial portThe IPL T S1 features one 9-pin D-sub serial port that can control one RS-232 serial device directly. |
IPL T S2The Extron IPL T S2 is a compact Ethernet control interface
with a high performance web server, designed to integrate IP connectivity
into A/V systems. The IPL T S2 gives users the ability to remotely and Two serial portsThe IPL T S2 features two 9-pin D-sub serial ports that
can control two RS-232, RS-422, or RS-485 serial devices directly. When
configured for pass-through mode, the IPL T S2 can pass through commands
from an existing control system and control a single device. The |
IPL T S4
|
IPL T S6The Extron IPL T S6 is a compact Ethernet control interface
with a high performance web server, designed to Six serial portsThe IPL T S6 features two 9-pin D-sub serial ports that can control two RS-232, RS-422, or RS-485 serial devices directly and four captive screw serial ports that can control four additional RS-232 devices. When configured for pass-through mode, the IPL T S6 can pass through commands from an existing control system and control three different devices. |
IPL T SF24The Extron IPL T SF24 is a compact Ethernet control interface with a high performance web server, two serial ports, and four Flex I/O ports. The IPL T SF24 is designed to integrate IP connectivity into A/V systems, giving users the ability to remotely and proactively monitor and troubleshoot projectors, flat-panel displays, switchers, and other products. Serial portsThe IPL T SF24 features two 9-pin D-sub serial ports that can control two RS-232, RS-422, or RS-485 serial devices directly. When configured for pass-through mode, the IPL T SF24 can pass through commands from an existing control system without losing the ability to communicate with the A/V device. The IPL T SF24 also includes two captive screw serial ports that are connected in parallel with the 9-pin serial ports. Flex I/O portsFour Flex I/O ports allow the IPL T SF24 to accept an
input voltage and send out a serial command, send an Flex I/O ports can be configured to receive analog voltages
for use with photo sensors, level feedback, strain gauges, thermocouples,
variable potentiometers and other devices. Incoming analog voltages from
0 to 24 volts are sampled with 12-bit precision. For example, a thermal
sensor installed in an equipment rack can be connected to one of the Flex
I/O inputs, and the IPL T SF24 can be configured to send an e-mail message,
turn Configured as digital inputs, the Flex I/O ports can connect to switches, motion sensors, moisture sensors, and tally feedback. This provides the ability to receive status from a variety of devices including projector lifts, motorized projection screens, room partition switches, and push buttons. When configured as digital outputs, the Flex I/O ports can drive LEDs, 24 volt incandescent lamps, or other devices that accept a TTL input signal. For applications that require contact closure control, the Flex I/O ports can interface with an Extron IPA T RLY4, an IP Link accessory featuring four isolated relays. |
IPL T SFI244The Extron IPL T SFI244 is a compact Ethernet control interface with a integral high performance web server, two RS-232 ports, four Flex I/O ports, four IR ports, and an IR learner. The IPL T SFI244 is designed to integrate IP connectivity into A/V systems, giving users the ability to remotely and proactively monitor and troubleshoot projectors, flat-panel displays, switchers, and other products. The IPL T SFI244 can be configured to send IR and serial signals, allowing a multitude of devices with these legacy interfaces to be easily adapted to high-speed LAN communication systems. Serial portsThe IPL T SFI244 features RS-232 connectivity on captive screw ports. When configured for pass-through mode, the IPL T SFI244 can pass through commands from an existing control system without losing the ability to communicate with the A/V device. IR capabilityThe IPL T SFI244 includes four fully programmable IR ports. Each IR port can output IR signals with or without the carrier signal using a wired IR emitter or through an IR broadcaster. IR control data can be collected and stored in two ways: IR data file download and IR learning. Extron maintains a vast library of IR data files that can be downloaded from our website for storage in the IPL T SFI244. In addition, the IPL T SFI244 has the ability to learn IR commands for virtually any IR controllable device. IR learning is a simple and easy process using Extron IR Learner software and the IR remote provided with the device. The IPL T SFI244 powers four IR emitters, each up to 400 feet away. Flex I/O portsFour Flex I/O ports allow the IPL T SFI244 to accept an input voltage and send out a serial command or trigger another event. These ports can support TTL and analog signals from 0 to 24 volts, allowing a wide variety of devices to be controlled and monitored. The Flex I/O ports can be configured in three ways: analog in, digital in, or digital out. Flex I/O ports can be configured to receive analog voltages
for use with photo sensors, level feedback, strain gauges, thermocouples,
variable potentiometers, and other devices. Incoming analog voltages from
0 to Configured as digital inputs, the Flex I/O ports can connect to switches, motion sensors, moisture sensors, and tally feedback. This provides the ability to receive status from a variety of devices including projector lifts, motorized projection screens, room partition switches, and push buttons. When configured as digital outputs, the Flex I/O ports can drive LEDs and 24 volt incandescent lamps with an additional external power supply, or other devices that accept a TTL input signal. For applications that require contact closure control, the Flex I/O ports can interface with an Extron IPA T RLY4, an IP Link accessory featuring four isolated relays. |
MLC 104The Extron MLC 104 MediaLink The flexible MLC 104 acts as an extended remote control panel. It is not a switcher; instead, as a controller, it tells the display when to switch between its various inputs. Presenters with little or no training can walk into any multimedia classroom and operate the A/V system. The MLC 104 includes universal display control for the power of a display, input switching, and volume control. For one-button functionality, the MLC 104 features backlit buttons that can be custom-labeled for easy identification. Because the buttons illuminate, they are helpful for presenters in low-light environments. The input selection buttons on the MLC 104 can be utilized for source selection, as well as sending various RS-232 or IR commands. Especially vital for high traffic areas, the MLC 104 is housed in a secure two-gang enclosure. It has the same look and functionality regardless of where it is mounted: a lectern, desk, rack, or wall box. Note: The MLC 104 is not an IP Link-enabled device. However, it can be serially connected to a PC and configured using the Global Configurator application. It can also be easily upgraded to an IP-enabled device with the MLC 104 IP Link Upgrade Kit, Extron part number 70-472-01. |
MLC 104 PlusThe Extron MLC 104 Plus MediaLink Controller is an easy-to-use control panel for any small classroom or meeting room. It is designed to control a wide range of smaller A/V systems. The MLC 104 Plus standardizes the control interface for all systems, making display systems simple to use. Standardization also makes setup and maintenance easier to support. The flexible MLC 104 Plus acts as an extended remote
control panel. It is not a switcher; instead, The MLC 104 Plus is also capable of learning IR commands for centralized control of external source devices, such as DVD players and VCRs, when used with an optional IRCM-Infrared Control Module. Especially vital for high traffic areas, the MLC 104 Plus is housed in a secure two-gang enclosure. It has the same look and functionality regardless of where it is mounted: a lectern, desk, wall, rack, or wall box. |
MLC 104 IPThe Extron MLC 104 IP MediaLink Controller is a control
panel for any classroom or conference room. It standardizes the control
interface for all systems, making display systems simple to use. Standardization
also makes setup and maintenance easier to support. The MLC 104 IP also
includes IP Link for Ethernet control, monitoring, and asset management.
The flexible MLC 104 IP acts as an extended remote control panel. It is not a switcher; instead, as a controller, it tells the display when to switch between its various inputs. Presenters with little or no training can walk into any multimedia classroom and operate the A/V system. The MLC 104 IP includes universal display control for the power of a display, input switching, and volume control. For one-button functionality, the MLC 104 IP features backlit buttons that can be custom-labeled for easy identification. Because the buttons illuminate, they are helpful for presenters in low-light environments. The input selection buttons on the MLC 104 IP can also be utilized for source selection, as well as sending various RS-232 or IR commands. Especially vital for high traffic areas, the MLC 104 IP is housed in a secure two-gang enclosure. It has the same look and functionality regardless of where it is mounted: a lectern, desk, rack, or wall box. |
MLC 104 IP PLUSThe Extron MLC 104 IP Plus MediaLink Controller with built-in IP Link Ethernet Control is an easy-to-use control panel for any small classroom or meeting room. It is designed to control a wide range of smaller A/V systems and enables web-based remote diagnostics, asset management, and support. The MLC 104 IP Plus standardizes the control interface for all systems, making display systems simple to use. Standardization also makes setup and maintenance easier to support. The flexible MLC 104 IP Plus acts as an extended remote
control panel. It is not a switcher; instead, as a controller, it tells
the display when to switch between its various inputs. Presenters with
little or no training can The MLC 104 IP Plus is also capable of learning IR commands for centralized control of external source devices, such as DVD players and VCRs, when used with an optional IRCM - Infrared Control Module. Especially vital for high traffic areas, the MLC 104 IP Plus is housed in a secure two-gang enclosure. It has the same look and functionality regardless of where it is mounted: a lectern, desk, rack or wall box. |
MLC 226 IPThe Extron MLC 226 IP MediaLink Controller is an enhanced control panel for controlling A/V equipment in any classroom or conference room. It standardizes the control interface for all systems, making display systems simple to use. Standardization also makes setup and maintenance easier to support. The MLC 226 IP also includes IP Link with GlobalViewer, a free web-based asset management and remote control software application. The MLC 226 IP MediaLink Controller offers several enhanced control capabilities including six input selection buttons, two bidirectional serial ports for display and switcher control, three unidirectional serial/IR control ports, six relays, and support for optional IRCM - Infrared Control Modules to control VCRs, DVDs, and other IR controllable equipment. The flexible MLC 226 IP acts as an extended remote control
panel. It is not a switcher; instead, as a controller, it tells the display
when to switch between its various inputs. Presenters with little or no
training can walk into any Especially vital for high traffic areas, the MLC 226 IP is housed in a secure, three-gang enclosure. It has the same look and functionality regardless of where it is mounted: a lectern, desk, wall, rack, or wall box. |

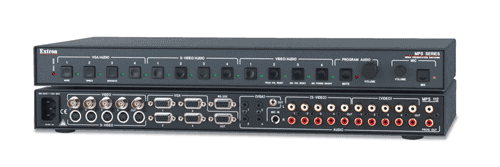

Media Presentation SwitchersMPS 112MPS 112CSThe Extron MPS 112 Media Presentation Switcher merges four independent switchers in a single enclosure:
Note: The MPS 112 and MPS 112CS are configurable in Global Configurator only when they are enabled by selecting the Enable MPS 112 check box on the Front Panel tab of a System 5 IP device (see the Enable MPS 112 subsection of "Front Panel Tab" for more information). |

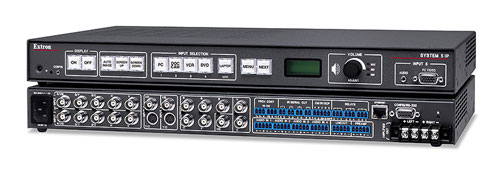

System 5 IPSystem 5 IP with AmplifierThe Extron System 5 IP is a five input, one output integrated A/V active switcher that provides an all-in-one, affordable solution for single projector A/V installations in classrooms, boardrooms, conference rooms, and multimedia environments. It includes such features as configurable inputs, easy-to-use IR learning, customized display control via RS-232, relays for room control, an integrated 40-watt, rms, audio amplifier, and IP Link Ethernet monitoring and control. Universal projector controlThe System 5 IP offers two methods of projector control: RS-232 or IR. The switcher can learn IR signals from remote controls. This enables the switcher to communicate with the display and sources such as VCRs and DVD players. IR learning makes setup and operation simple and customizable. Virtually any RS-232 controllable projector or display device can be used with the System 5 IP. Extron creates and administers a wide selection of commonly used projector control drivers that enable the System 5 IP to control basic projector functions such as power and input selection. Users can create their own drivers or go to the Extron web site to download RS-232 drivers configured for the latest and most popular projectors. In addition, a custom configuration mode is available to allow for user-defined IR or RS-232 commands. Room controlThe System 5 IP also offers room control capability, so that room lighting, screen settings, and other device functions can be controlled through the six internal relays of the switcher. By providing projector control, room control, universal compatibility with displays, and system audio capabilities, the System 5 IP consolidates functions that would typically require up to six different products into one integrated solution. Fixed and variable preamp line level outputsThe System 5 IP provides fixed and variable line level audio outputs on captive screw connectors for use with an external amplifier or self-powered speakers. Fixed audio outputs are especially effective when used with external mixers, amplifiers, and assistive listening devices. Variable audio outputs enable the audio signal levels to be adjusted using the volume control on the switcher. Integrated stereo audio amplifierThe System 5 IP is available with or without an internal 40-watt audio amplifier, 2 x 20 watts rms, to drive 4 or 8 ohm speakers. The unit can also be set for dual mono mode where it sums the left and right input signals together and drives the same mono signal to both the left and right outputs. IP Link Ethernet controlThe System 5 IP is equipped with Extron IP Link technology, an IP integration technology specifically engineered to meet the needs of professional A/V environments from small K-12 classrooms to large universities and businesses. IP Link provides these advantages:
Control optionsSystem switcher control is provided via the front panel backlit buttons, the optional IR 402 remote control, or optional SCP 104 and SCP 226 System Control Panels. The front panel backlit input buttons of the System 5 IP can be individually labeled to ensure precise identification of video and audio input settings. Additionally, the front panel includes buttons for display functions such as power, mute, video modes, and room controls such as lowering or raising a display screen or powering lights on or off. As a simplified and cost-effective option, the System 5 IP is also offered without front panel controls, but still provides the front panel 15-pin HD input connector for RGBHV. The optional IR 402 remote, SCP 104, and SCP 226 System
Control Panels both duplicate the System 5 IP front panel functions and
enable users to remotely control the switching, projector, and room functions
of the switcher. The SCP 104 and SCP 226 AAP models
include an opening that accommodates up to four single space AAPs (Architectural
Adapter Plates). There are hundreds of AAPs to
choose from, some of which offer |
downloaded from our website
for storage in the IPL 250. In addition, the IPL 250 has the ability to
learn IR commands for virtually any IR controllable device. IR learning
is a simple and easy process using Extron IR Learner software and the
IR remote provided with the device. The IPL 250 powers four IR emitters,
each up to 400 feet away.
sounding an alarm when a door
is opened or when a motion detector detects movement.
integrate IP connectivity into
A/V systems. The IPL T S1 gives users the ability to remotely and proactively
monitor and troubleshoot a projector, flat-panel display, switcher, or
other serially controlled device.
proactively monitor and troubleshoot projectors,
flat panel displays, switchers, and other RS-232, RS-422, and RS-485 serially
controlled devices.
integrate IP connectivity into
A/V systems. The IPL T S6 gives users the ability to remotely and proactively
monitor and troubleshoot projectors, flat-panel displays, switchers, and
other serially controlled products.
on auxiliary cooling fans, and turn off
equipment if the rack temperature exceeds a specified value.
on auxiliary cooling fans, and turn off
equipment if the rack temperature exceeds a specified temperature value.
as a controller, it tells the
display when to switch between its various inputs. Presenters with little
or no training can walk into any multimedia classroom equipped with the
MLC 104 Plus and operate the A/V system. The MLC 104 Plus includes universal
display control for the power of a display, input switching, and volume
control. For
walk into any multimedia classroom
equipped with the
multimedia classroom and operate
the A/V system. The MLC 226 IP includes universal display control for
the power of a display, input switching, and volume control. The MLC 226
IP features backlit buttons that can be custom-labeled for easy identification.
Because the buttons illuminate, they are helpful for presenters in low-light
environments. The input selection and room/function buttons on the MLC
226 IP can be utilized for source selection and relays, as well as sending
various RS-232 or IR commands.
pass-through connections and
IR control options. Either control panel can be
mounted in a wall, podium, or table, and is available in gray, black,
or white to blend in with the environment.
