Pre/Post-matrix Trim Controls

Pre-matrix Trim

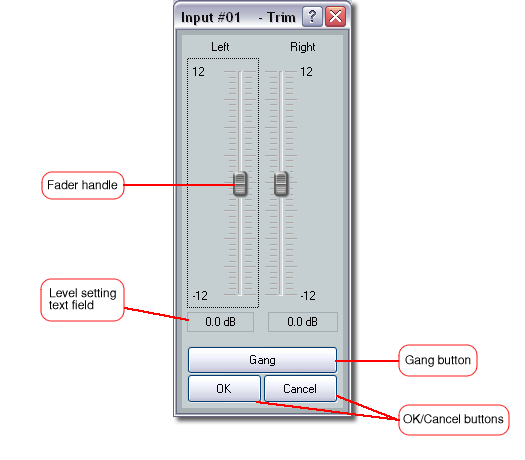

Each input channel Trim block provides L/R faders with a gain range of -12 to +12dB. Fader behavior is identical to the Gain block, with the exception that fine adjustment increases/decreases level from the previous setting in 0.1dB increments, while coarse adjustment is 3dB (using the up/down arrow and Page Up/Page Down keys). The default setting is unity gain (0.0dB).

A Gang button couples the L/R faders. Ganged faders move together at relative levels to the top or bottom of their travel. If one fader reaches the limit of its travel first, it will retain that position while the other fader continues to travel, reverting to the relative position, when reached, in the reverse travel direction.

Post-matrix Trim

Each output channel Trim block provides L/R long-throw (large) faders with a gain range of -12 to +12dB. Fader behavior is identical to the Gain block, with the exception that fine adjustment increases/decreases level from the previous setting in 0.1dB increments, while coarse adjustment is 3dB (using the up/down arrow and Page Up/Page Down keys). The default setting is unity gain (0.0dB).

A Gang button couples the L/R faders. Ganged faders move together at relative levels to the top or bottom of their travel. If one fader reaches the limit of its travel first, it will retain that position while the other fader continues to travel, reverting to the relative position, when reached, in the reverse travel direction.
