Build All Configurations

Before a configuration file is active in the GlobalViewer® interface, the GC file must be built and uploaded to a GlobalViewer host device on the A/V network.

The build process compiles all of the configuration data (such as port assignments, device locations, and schedules) you entered into the GC file for each device on the A/V network.

The upload process delivers the built (compiled) file to the GlobalViewer host device.

After the compiled GC file has been uploaded to a host device, you can launch the GlobalViewer interface by entering the IP address of the host device in the Address field of an Internet browser.

Building All Configurations

The Build All Configurations option compiles configuration data for all devices in the GC file, including data for devices previously compiled and uploaded to a GlobalViewer host device.

To initiate a Build All process:

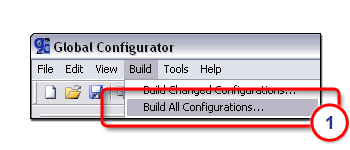

  1. From the Build menu, select Build All Configurations.

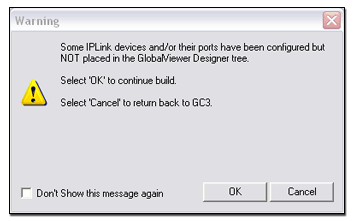

Warning

If you added a device, but have not assigned that device to a location in the GlobalViewer Tree window, you are prompted by a Warning dialog when you attempt to build a configuration file.

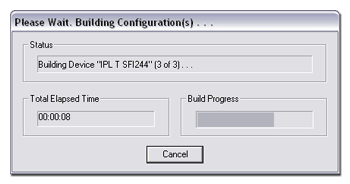

Please Wait. Building Configuration(s)...

When you select Build All Configurations, a Please Wait. Building Configuration(s)... dialog box containing an activity bar is displayed while the build process completes.

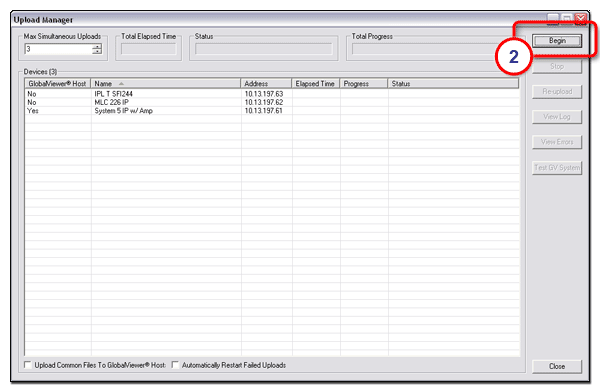

Upload Manager window

When the build process is complete, the Upload Manager screen opens.

  1. Click the Begin button to upload the newly built GC file to the designated GlobalViewer host.

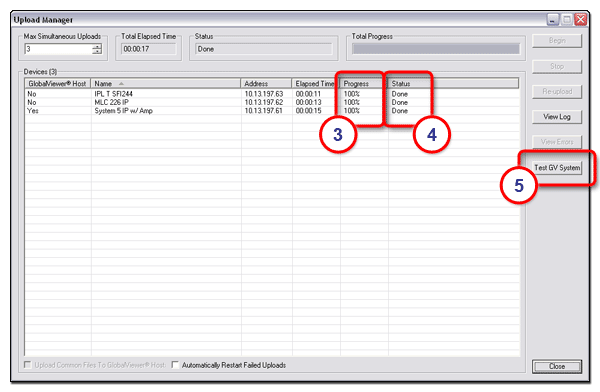

Upload complete

When the upload is complete, the Progress (3) and Status (4) fields are updated to indicate completion.

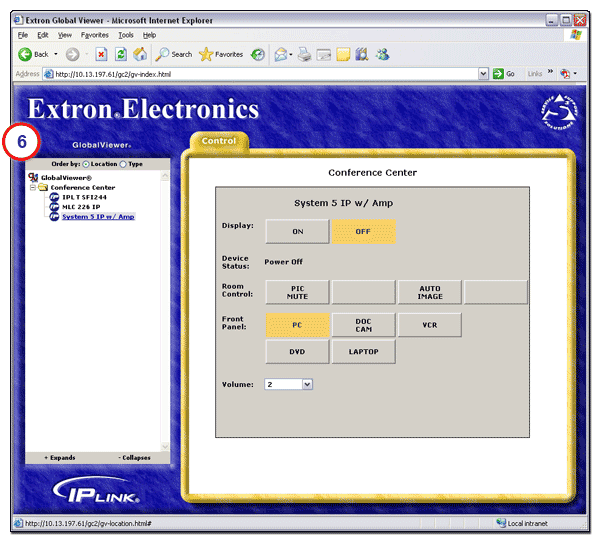

Click the Test GV System button (5) to view the GlobalViewer host interface (6).
