| DTP T/R DP 4K 330 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30 fps |
| Chroma sampling1 | 4:4:4 or 4:2:2 |
| Color bit depth1 | 8 bits per color |
| Signal Type | DisplayPort, HDCP |
| Max. video data rate | 10.8 Gbps (2.7 Gbps per lane) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (www.extron.com/8Kdatarate) to determine video parameters supported by this data rate. |
|
| NOTE | This product consists of a transmitter (DTP T DP 4K 330) and a receiver (DTP R DP 4K 330), sold separately, with a twisted pair cable linking the transmitter and receiver. |
|
|
| Video |
|---|
| Maximum data rate | Up to 10.8 Gbps (2.7 Gbps per lane) |
| Maximum pixel clock | |
| Transmitter | 300 MHz |
| Receiver | 268 MHz |
| Resolution range | Up to 2560x1600* @ 60 Hz or
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz
(* reduced blanking) |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Formats | RGB and YCbCr digital video |
| Standard | DisplayPort 1.1a, HDCP 1.4, 2.3 |
| NOTE | Only Single Stream Transport (SST) is supported. |
|
|
| Video input — transmitter |
|---|
| Number/signal type | 1 DisplayPort |
| Connector | 1 female DisplayPort |
|
| Interconnection between transmitter and receiver |
|---|
| Signal Type | DTP 330 |
| Connector | 1 female RJ-45 per unit |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance | |
| 1080p @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| 2560x1600 @ 60 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| 4K/UHD @ 30 Hz | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
| NOTE | Input and output mode signaling:
DTP: HDMI with embedded audio, analog audio, RS-232 and IR, and remote power

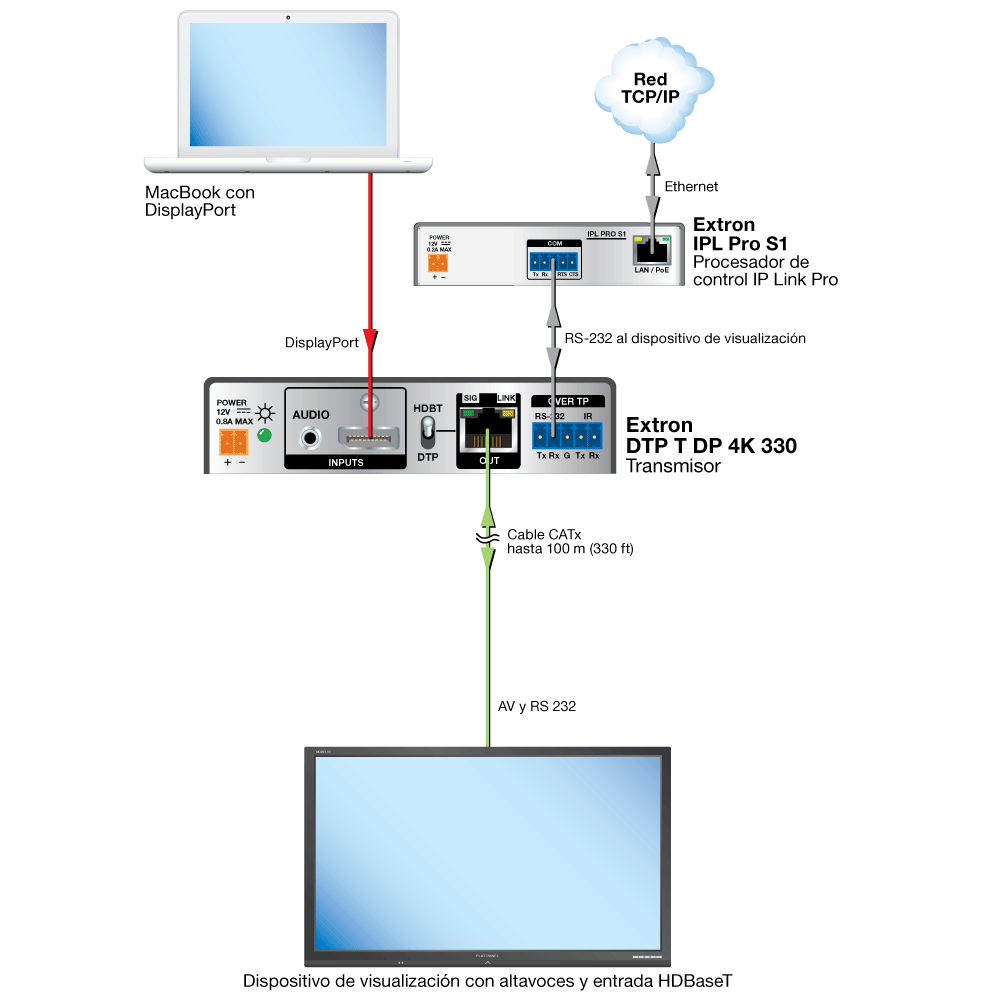

HDBaseT: HDMI with embedded audio plus RS-232 and IR |
|
|
| Video output — receiver |
|---|
| Number/signal type | 1 DisplayPort |
| Connectors | 1 female DisplayPort |
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 20 Hz to 20 kHz at maximum output |
| S/N | >90 dB, at maximum input (unweighted) |
| Stereo channel separation | >80 dB |
| Digital sampling | 48 kHz |
| Bit Depth | 16 bit |
|
| Audio input |
|---|
| Signal Type | |
| Analog audio (over DTP) | Stereo (2 channel), balanced/unbalanced |
| NOTE | Analog audio is not embedded onto the DisplayPort signal. Embedded digital audio is not de-embedded from the DisplayPort signal. |
|
| Digital audio | Embedded digital audio on DTP signal |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS Digital Surround 5.1, DTSES Matrix 6.1, DTS-ES Discrete 6.1 |
| Connector | (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7 dBV (unbalanced) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output |
|---|
| Signal Type | |
| Analog audio (over DTP) | Stereo (2 channel), balanced/unbalanced |
| NOTE | Analog audio is not embedded onto the DisplayPort signal. Embedded digital audio is not de-embedded from the DisplayPort signal. |
|
| Digital audio | Embedded digital audio on DTP signal |
| Embedded digital audio source formats | 2-ch PCM, PCM, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS Digital Surround 5.1, DTSES Matrix 6.1, DTS-ES Discrete 6.1 |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.2 dB channel to channel |
| Maximum level (600 ohm) | >+14 dBu, balanced |
| Connectors | |
| Digital audio | Female DisplayPort |
| Analog audio | (1) 3.5 mm captive screw connector, 5 pole |
|
| Communications — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control port input/output | |
| Transmitter | RS-232 via (1) 3.5 mm, 5 pole captive screw connector for RS-232 control (±5 V) (connector is shared with IR control port) |
| Receiver | 1 set of proprietary signals on a female RJ-45 jack |
| Serial control port output/input | |
| Transmitter | 1 set of proprietary signals on a female RJ-45 jack |
| Receiver | RS-232 via a 3.5 mm, 3 pole captive screw connector |
| Baud rate and protocol | 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR control port | (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption | |
| Transmitter | |
| Device | 3.4 watts |
| Device and power supply | 4.8 watts |
| Remote power budget | 12 watts |
| Receiver | |
| Device | 5.5 watts |
| Device and power supply | 6.8 watts |
| Remote power budget | 12 watts |
| NOTE | Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable. |
|
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Transmitter | |
| Device | 11.6 BTU/hr |
| Device and power supply | 16.1 BTU/hr |
| Receiver | |
| Device | 17.6 BTU/hr |
| Device and power supply | 21.9 BTU/hr |
| Mounting |
| Rack mount | Yes, with optional 1U high rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | |
| Transmitter | 1.0" H x 4.3" W x 6.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Receiver | 1.0" H x 4.3" W x 6.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Product weight | |
| Transmitter | 0.5 lbs (0.3 kg) |
| Receiver | 1.0 lb (0.5 kg) |
| Regulatory compliance | CE, c-UL, UL, CE**, C-tick, FCC Class A**, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5341-D15) |
