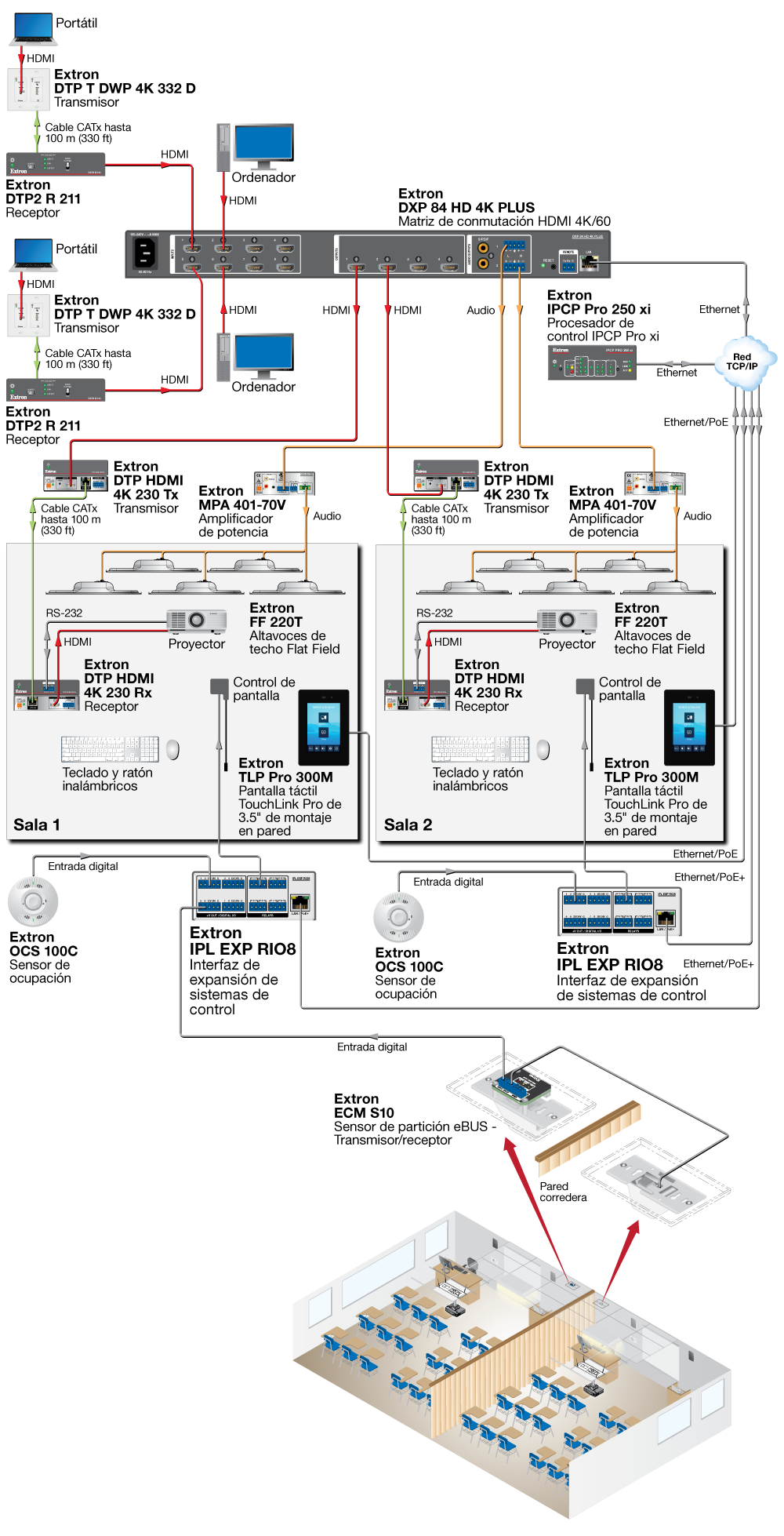

| IPL EXP RIO8 |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Software |
|---|
| Configuration software | Global Configurator® Plus and Professional |
| Programming software | Global Scripter® |
| Control apps | Extron Control, iGVE |
| Resource management software | GlobalViewer® Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Ethernet |
|---|
| Network interface controllers (NICs) | 1 |
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.0 |
|
| Digital I/O |
|---|
| Quantity/type | 8 digital input/output (configurable) |
| Connectors | (4) 3.5 mm captive screw connectors, 5 pole |
| Digital inputs | |
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
| Input impedance | >10k ohms |
| Programmable pullup | 1k ohms to +5 VDC |
| Threshold low to high | 2.8 VDC |
| Threshold high to low | 2.0 VDC |
| Digital outputs | 250 mA sink from 24 VDC max. |
| 12 VDC, 24 VDC outputs | Aggregate power output: 19 watts
|
| Pin configuration | 1, 2 = digital I/Os; 3 = 12 VDC; 4 = 24 VDC; 5 = Gnd |
|
| Relays |
|---|
| Quantity/type | 8 normally open relays |
| Relay control connectors | (4) 3.5 mm captive screw connectors, 4 pole |
| Relay control contact rating | 24 VDC, 1 A |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet Plus (PoE+) (complies with PoE 802.3af, class 4);
56 VDC (PoE), minimum 0.8 A |
| Power consumption — Power injector (PI 115) | |
| Device | 26.9 watts, 56 VDC (PoE+) |
| Device and PoE injector | 31.5 watts, 100-240 VAC, 50-60 Hz |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 26.9 BTU/hr |
| Device and PoE injector | 42.5 BTU/hr |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf or back of the rack mounting kit |
| Furniture mount | Yes, with optional bracket kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 4.3" W x 6.0" D (1U high, quarter rack wide)
(43 mm H x 109 mm W x 152 mm D) |
| Product weight | 0.45 lbs (0.2 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, KC, UL, UL Listed for use in plenum air spaces (meets UL 2043 for heat and smoke release), VCCI
Complies with the appropriate requirements of RoHS, WEEE |
| Warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6584-D6) |
