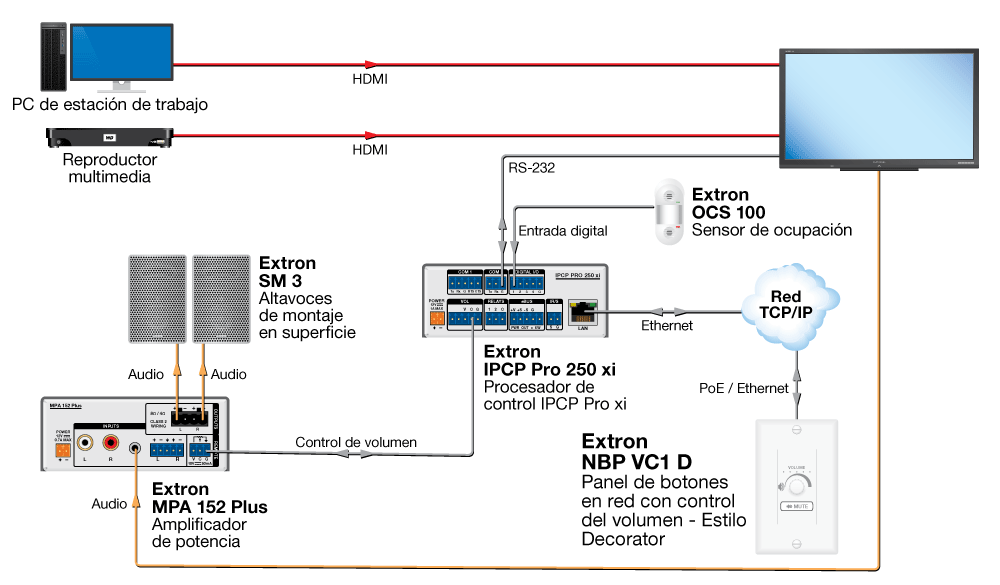

| Network Button Panels — Decorator-style Series |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Software |
|---|
| Configuration software | Global Configurator® Plus and Professional |
| Programming software | Global Scripter®
ControlScript® Deployment Utility and ControlScript Extension for VS Code |
| Control apps | Extron Control |
| Resource management software | GlobalViewer® Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Ethernet |
|---|
| Network interface controllers (NICs) | 1 |
| Connector | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.253
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) |
| Power consumption — Power injector (PI 115) | |
| NBP 105 D | |
| Device | 2.0 watts |
| Device and PoE injector | 5.1 watts |
| NBP 106 D | |
| Device | 2.2 watts |
| Device and PoE injector | 5.1 watts |
| NBP 108 D | |
| Device | 1.9 watts |
| Device and PoE injector | 5.0 watts |
| NBP 110 D | |
| Device | 2.0 watts |
| Device and PoE injector | 4.6 watts |
| NBP VC1 D | |
| Device | 1.5 watts |
| Device and PoE injector | 2.3 watts |
| NBP VC2 D | |
| Device | 1.9 watts |
| Device and PoE injector | 2.7 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| NBP 105 D | |
| Device | 6.7 BTU/hr |
| Device and PoE injector | 17.1 BTU/hr |
| NBP 106 D | |
| Device | 7.5 BTU/hr |
| Device and PoE injector | 17.3 BTU/hr |
| NBP 108 D | |
| Device | 6.4 BTU/hr |
| Device and PoE injector | 16.8 BTU/hr |
| NBP 110 D | |
| Device | 6.5 BTU/hr |
| Device and PoE injector | 15.7 BTU/hr |
| NBP VC1 D | |
| Device | 5.2 BTU/hr |
| Device and PoE injector | 7.9 BTU/hr |
| NBP VC2 D | |
| Device | 6.6 BTU/hr |
| Device and PoE injector | 9.2 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Yes, in a standard US 1-gang electrical junction box or mud ring |
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure |
| Enclosure dimensions |
| Faceplate | 4.50" H x 2.75" W x 0.26" D (114 mm H x 70 mm W x 6.6 mm D) |
| Device - NBP VC1 D | 4.15" H x 1.78" W x 2.23" D (105 mm H x 45 mm W x 57 mm D) with mounting tabs, bezel, button, and knob
2.72" H x 1.67" W x 1.46" D (69 mm H x 42 mm W x 37 mm D) without mounting tabs, bezel, button, or knob
Fits most 1 gang US boxes or mud rings. Allow enough depth in the wall or furniture for device and cable clearance.) |
| |  |
| Device - all other models | 4.15" H x 1.78" W x 1.69" D (105 mm H x 45 mm W x 43 mm D) with mounting tabs, bezel and buttons
2.72" H x 1.67" W x 1.35" D (69 mm H x 42 mm W x 34 mm D) without mounting tabs, bezel, or buttons
(Fits most 1 gang US boxes or mud rings. Allow enough depth in the wall or furniture for device and cable clearance.) |
| |  |
| Product weight | 0.2 lbs (0.1 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6248-D5) |
