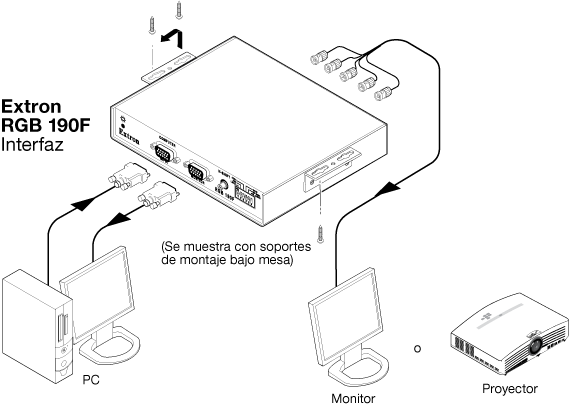

La RGB 190FV de Extron es una interfaz de vídeo de ordenador analógica, universal, con una entrada HD hembra de 15 pines y salida de monitor local con buffer. Incluye un intervalo de frecuencia de 15-150 kHz, 300 MHz (-3 dB) de ancho de banda de vídeo RGB y es compatible con casi cualquier señal de vídeo de ordenador, incluidas VGA–QXGA, Mac, Sun® y SGI®. La terminación de bits ID en los pines 4 y 11 de su entrada HD de 15 pines asegura que los ordenadores que requieren monitor local funcionen aun en caso de que no haya conectado un monitor.

Especificaciones

RGB 190FV
Video
Gain	Unity (0.7 V), (0.8 V) 15% with 3 dB peaking
Max. rise/fall time	1.5 ns
Bandwidth	300 MHz (-3 dB)
Video input and loop through
Number/signal type	1 analog VGA-QXGA, RGBHV, RGBS, RGsB 1 buffered local monitor loop-through identical to the input
Connectors	1 female 15-pin HD (input) 1 female 15-pin HD (loop-through)
Nominal level	0.7 Vp-p for RGB
Minimum/maximum levels	Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance	75 ohms
Horizontal frequency	15 kHz to 130 kHz
Vertical frequency	30 Hz to 170 Hz
Return loss	<-41 dB @ 5 MHz
DC offset (max. allowable)	4 V
Video output
Number/signal type	1 RGBHV, RGBS, RGsB
Connectors	6 female BNC
Nominal level	0.7 Vp-p for RGB
Minimum/maximum levels	0.7 V to 0.8 Vp-p (switch selectable) with peaking
Impedance	75 ohms
Return loss	-45 dB @ 5 MHz
DC offset	±5 mV with input at 0 offset
Sync
Input type	RGBHV, RGBS, RGsB (does not strip sync from video)
Output type	RGBHV at all times, RGBS at all times, RGsB (switch selectable)
Input level	2.0 V to 5.5 Vp-p with ±0.2 VDC offset (max.)
Output level	4.0 V to 5.0 Vp-p, unterminated
Input impedance	510 ohms
Output impedance	75 ohms
Max. propagation delay	57 ns
Max. rise/fall time	4 ns
Polarity	RGBHV input: positive or negative (follows input) RGBS, RGsB input: negative
General
External Power supply	100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated, included
Power input requirements	12 VDC, 0.35 A
Cooling	Convection, no vents
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting
Furniture mount	Yes, with included under-desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 5.7" W x 4.5" D (2.5 cm H x 14.5 cm W x 11.4 cm D) (Depth excludes connectors.)
Product weight	0.9 lbs (0.4 kg)
Shipping weight	3 lbs (2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
