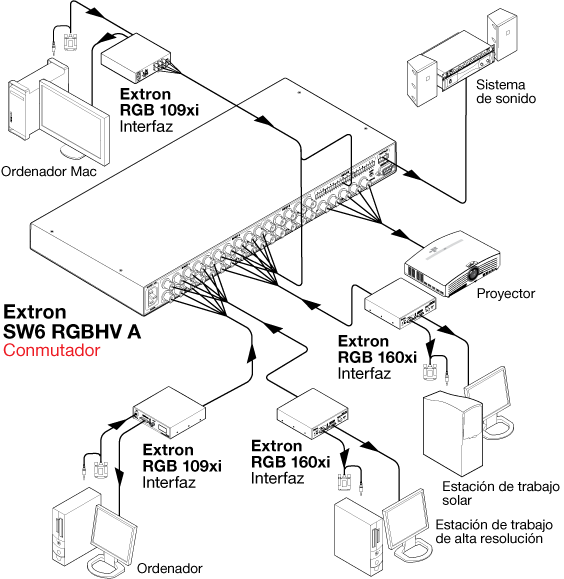

| SW2/4/6 RGBHV and SW2/4/6 RGBHV A |
|
| Video |
|---|
| Gain | Unity. |
| Bandwidth | 350 MHz (-3 dB) |
| Crosstalk | -70 dB @ 10 MHz |
| Switching speed | 5 ms (max.) |
|
| Video input |
|---|
| Number/signal type | |
| SW2 RGBHV/RGBHV A | 2 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) |
| SW4 RGBHV/RGBHV A | 4 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) |
| SW6 RGBHV/RGBHV A | 6 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) |
| Connectors | |
| SW2 RGBHV/RGBHV A | 2 x 5 female BNC |
| SW4 RGBHV/RGBHV A | 4 x 5 female BNC |
| SW6 RGBHV/RGBHV A | 6 x 5 female BNC |
| Nominal level | 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | Analog: 0.3 V to 1.5 Vp-p with no offset |
| Impedance | 75 ohms |
| Return loss | <-30 dB @ 10 MHz |
| DC offset (max. allowable) | 5.0V |
| Input coupling | DC |
|
| Video output |
|---|
| Number/signal type | 1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (or digital audio) |
| Connectors | 5 female BNC |
| Nominal level | 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | 0.5 V to 1.5 Vp-p (follows input) |
| Impedance | 75 ohms |
| Return loss | <-30 dB @ 10 MHz |
| DC offset | ±5 mV maximum with input at 0 offset |
|
| Sync |
|---|
| Input type | RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| Output type | RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| Input level | Analog or TTL, 0.5 V to 5.0 Vp-p |
| Output level | 5.0 Vp-p, unterminated, for V output; H output follows input |
| Input impedance | 510 ohms for V input and unselected H input; the selected H input impedance is determined by the device connected to the H output. |
| Output impedance | 75 ohms for V output; the H output impedance is determined by the device connected to the selected H input. |
| Max. input voltage | 5.0 Vp-p |
| Max. propagation delay | 35 ns |
| Max. rise/fall time | 4 ns |
| Polarity | Positive or negative (follows input) |
|
| Audio — SW 2/4/6 RGBHV A only |
|---|
| Gain | -18 to +24 dB, adjustable
When audio gain is set to unity (0 dB), balanced output will have a 0 dB gain; unbalanced output will be attenuated by 6 dB. |
| Frequency response | 20 Hz to 20 kHz, ±0.05 dB |
| THD + Noise | 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level |
| S/N | >90 dB at maximum output |
| Crosstalk | <-65 dB @ 20 kHz, <-80 dB @ 1 kHz or below 60 Hz |
| Stereo channel separation | >80 dB @ 20 Hz to 20 kHz |
| CMRR | >75 dB @ 20 Hz to 20 kHz |
|
| Digital audio — all models' H channel |
|---|
| Input type | Dolby® Digital, DTS, AES/EBU |
| Output type | Dolby Digital, DTS, AES/EBU |
| Bandwidth | 250 MHz (-3 dB) |
| Sampling Rates | 32, 44.1, 48, 96 kHz |
| Input level | 0.5 V to 5.0 Vp-p |
| Output level | 2.5 Vp-p (when terminated with 75 ohms) |
| Input impedance | 510 ohms for unselected inputs; for the selected input, impedance is determined by the device connected to the output |
| Output impedance | Determined by the device connected to the selected input |
| Max. input voltage | 5.0 Vp-p |
| Max. propagation delay | 35 ns |
| Max. rise/fall time | 4 ns |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio input — SW 2/4/6 RGBHV A only |
|---|
| Number/signal type | 2, 4, or 6 (depending on the model) stereo, balanced/unbalanced |
| Connectors | 2, 4, or 6 (depending on the model) 3.5 mm captive screw connectors, 5 pole |
| Impedance | >10k ohms unbalanced, 20k ohms balanced, DC coupled |
| Nominal level | -20 dBV (100 mVrms), -10 dBV (316 mVrms), 0 dBu (0.775 Vrms), or
+4 dBu (1.23 Vrms), configurable |
| Maximum level | +20 dBu, (balanced or unbalanced) at 1% THD+N |
| Input gain adjustment | -24 dB to +18 dB, adjustable per input |
| Input coupling | DC |
|
| Audio output — SW 2/4/6 RGBHV A only |
|---|
| Number/signal type | 1 stereo, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Impedance | 50 ohms unbalanced, 50 ohms balanced |
| Nominal level | -10 dBV (316 mV) or +4 dBu (1.23 V), configurable |
| Maximum level (Hi-Z) | >26 dBu, balanced; >+20 dBu, unbalanced at 1% THD+N |
| Maximum level (600 ohm) | >+21 dBm, balanced; >+15 dBm, unbalanced at 1% THD+N |
|
| Control/remote — switcher |
|---|
| Serial control port | RS-232, female 9-pin D connector (same as the contact closure port) |
| Baud rate and protocol | 9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configuration | 2 = TX, 3 = RX, 5 = GND |
| Contact closure | 1 female 9-pin D connector (same as the RS-232 port) |
| Contact closure pin configuration | 1 = input #1, 4 = input #2, 6 = input #3, 7 = input #4, 8 = input #5, 9 = input #6 |
| Program control | Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™) |
|
| General |
|---|
| Power | 100 VAC to 240 VAC, 50-60 Hz, 20 watts, internal |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing |
| Cooling | Convection, no vents |
| Rack mount | |
| SW2 RGBHV, SW2 RGBHV A | Yes, with optional 1U deep rack shelf |
| All other models | Yes, with included mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | |
| SW2 RGBHV, SW2 RGBHV A | 1.75" H x 8.75" W x 9.5" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 24.1 cm D
(Depth excludes connectors.) |
| All other models | 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)
4.4 cm H x 44.5 cm W x 21.6 cm D
(Depth excludes connectors.) |
| Product weight | |
| SW2 RGBHV | 2.4 lbs (1.1 kg) |
| SW2 RGBHV A | 2.5 lbs (1.1 kg) |
| All other models | 7.0 lbs (3.2 kg) |
| Shipping weight | |
| SW2 RGBHV, SW2 RGBHV A | 5 lbs (3kg) |
| All other models | 12 lbs (6 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (7.6-102009-D6) |
